Parlec DA (Double Angle) Collet Chucks

View Catalog Page

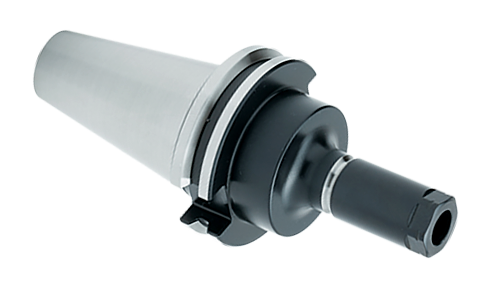

Parlec Double Angle Collet Chucks

  • Constructed from AISI 8620 Steel for wear resistance

  • Hardened to 52-56Rc for durability and long service life

  • Taper to collet seat accuracy of 0.0004" or better

Click HERE to see our TG/PG Chucks in our online store

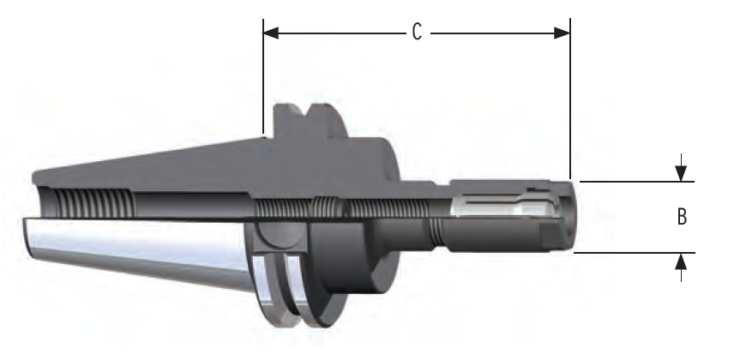

CAT40 Double Angle Collet Chucks

Part #Collet SeriesB (Dia.)CMax ShankBackup Screw (Incl.)Nut (Incl.)Wrench (Opt.)
C40-30DC3DA 300.62″3.38″.250″029-909CN30300CNW
C40-30DC5DA 300.62″5.15″.250″029-909CN30300CNW
C40-20DC2DA 2001.10″2.73″.393″BS-20CN20ECN75W
C40-20DC3DA 2001.10″3.00″.393″BS-20ECN75ECN75W
C40-20DC5DA 2001.10″5.00″.393″BS-20ECN75ECN75W
C40-18DC2DA 1801.44″2.95″.787″BS-18ECN12ECN12W
C40-18DC3DA 1801.44″3.38″.787″BS-18ECN12ECN12W
C40-18DC5DA 1801.44″5.15″.787″BS-18ECN12ECN12W

CAT50 Double Angle Collet Chucks

Part #Collet SeriesB (Dia.)CMax ShankBackup Screw (Incl.)Nut (Incl.)Wrench (Opt.)
C50-18DC3DA 1801.44″3.38″.787″BS-18ECN12ECN12W
C50-18DC6DA 1801.44″6.15″.787″BS-18ECN12ECN12W
C50-18DC8DA 1801.44″8.15″.787″BS-18ECN12ECN12W

BT40 Double Angle Collet Chucks

Part #Collet SeriesB (Dia.)CMax ShankBackup Screw (Incl.)Nut (Incl.)Wrench (Opt.)
B40-30DC3DA 300.62″3.00″.250″029-909CN30300CNW
B40-20DC2DA 2001.10″2.75″.393″BS-20CN20ECN75W
B40-18DC3DA 1801.44″3.00″.787″BS-18ECN12ECN12W

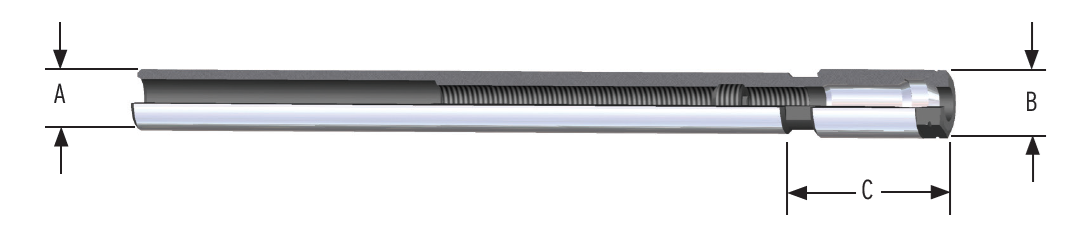

Double Angle Extensions

Collet SeriesPart #A (Dia.)B (Dia.)COverall LengthMax ShankNut (Incl.)Wrench (Opt.)
DA300EXT500.50″.56″1.32″6.82″.250″ECN50ECN50W
DA200EXT750.75″.81″1.69″7.14″.393″ECN75ECN75W
DA100EXT1001.00″1.06″1.83″7.28″.562″ECN10ECN10W
DA180EXT1251.25″1.44″1.81″7.88″.787″ECN12ECN12W
