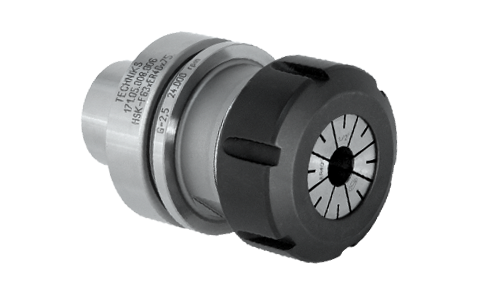

HSK F Collet Chucks
Click on the Part Number below to see the product in our online store
| Part Number | Description | l1 | D | Wrench | Nut | Flats | 2D | 3D |
|---|---|---|---|---|---|---|---|---|
31419-F | HSK50F x ER32 - 80mm, slotted nut | 80mm | 50mm | 4616 | 46132 | 36mm |
31419-F.dwg
|
31419-F.step
|
103.123.11.100 | HSK63F x ER11 - 100mm, mini nut | 100mm | 16mm | 4621 | 23111 | - |
103.123.11.100.dwg
|
103.123.11.100.step
|
31431-F | HSK63F x ER16 - 60mm, slotted nut | 60mm | 32mm | 4613 | 46116 | 26mm |
31431-F.dwg
|
31431-F.step
|
31434-F | HSK63F x ER16 - 100mm, slotted nut | 100mm | 32mm | 4613 | 46116 | 26mm |
31434-F.dwg
|
31434-F.step
|
30000 | HSK63F x ER32 - 70mm, slotted nut | 70mm | 50mm | 4616 | 46132 | 36mm |
30000.dwg
|
30000.step
|
30001 | HSK63F x ER40 - 75mm, slotted nut | 75mm | 63mm | 4617 | 46140 | 46mm |
30001.dwg
|
30001.step
|
30001-L | HSK63F x ER40 - 75mm, left-hand thread | 75mm | 63mm | 4617 | 46140-L | 46mm |
30001-L.dwg
| 30001-L.step |
| 30001-Solid | HSK63F x ER40 - 75mm, No thru hole | 75mm | 63mm | 4617 | 46140 | 46mm | 30001-Solid.dwg | 30001-Solid.step |
30002 | HSK63F x ER40 - 90mm, slotted nut | 90mm | 63mm | 4617 | 46140 | 46mm | 30002.dwg | 30002.step |
30003 | HSK63F x ER40 - 115mm, slotted nut | 115mm | 63mm | 4617 | 46140 | 46mm |
30003.dwg
|
30003.step
|
30005 | HSK63F x ER40 - 125mm, slotted nut | 125mm | 63mm | 4617 | 46140 | 46mm |
30005.dwg
|
30005.step
|
31025F | HSK63 F x SYOZ 25 - 80mm, slotted nut | 80mm | 60mm | 83691 | 83632 | 38mm |
31025F.dwg
|
31025F.step
|
