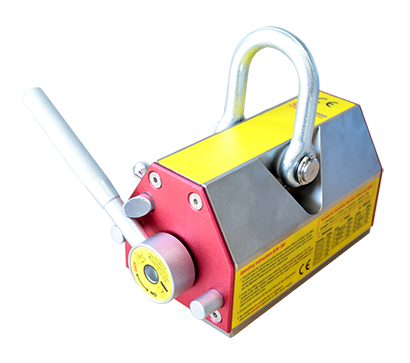

ELM Lifting Magnets
Benefits of ELM Lifting Magnets
Product Description
ELM Lifting Magnets use powerful rare-earth magnets deliver up to 6,600 lbs. of holding power. Throughout the metalworking and manufacturing industry factories are switching to magnetic lifting for their material handling. These magnets feature a safety rating 3.5X greater than straps and slings where risk of injury to back, fingers, and toes are almost unavoidable.
Call us today! Our engineers work with you to provide custom TURN-KEY solutions that integrate easily into your production process in order to improve efficiency and maximize productivity.
| Part No. | Plate | Round | A | B | C | D | E | F | G | H | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ELM-100 | 220 lbs. | 99 lbs. | 4.2" | 3.3" | 4.7" | 4.9" | 2.4" | 2.8" | 1.6" | 1.2" | 5.5 lbs. |
| ELM-300 | 660 lbs. | 300 lbs. | 7.1" | 6.1" | 6.1" | 7.3" | 3.6" | 3.7" | 2.0" | 1.6" | 18.9 lbs. |
| ELM-600 | 1,320 lbs. | 600 lbs. | 10.0" | 8.8" | 8.3" | 10.2" | 4.5" | 4.7" | 3.0" | 2.0" | 46 lbs. |
| ELM-1000 | 2,200 lbs. | 990 lbs. | 11.0" | 9.6" | 11.3" | 14.6" | 6.5" | 6.7" | 3.8" | 3.4" | 101 lbs. |
| ELM-2000 | 4,400 lbs. | 1,980 lbs. | 16.6" | 15.0" | 13.7" | 20.2" | 8.5" | 8.5" | 4.1" | 4.8" | 259 lbs. |
| ELM-3000 | 6,600 lbs. | 2,970 lbs. | 22.3" | 20.9" | 15.7" | 30.3" | 8.5" | 8.7" | 5.8" | 3.2" | 399 lbs. |
